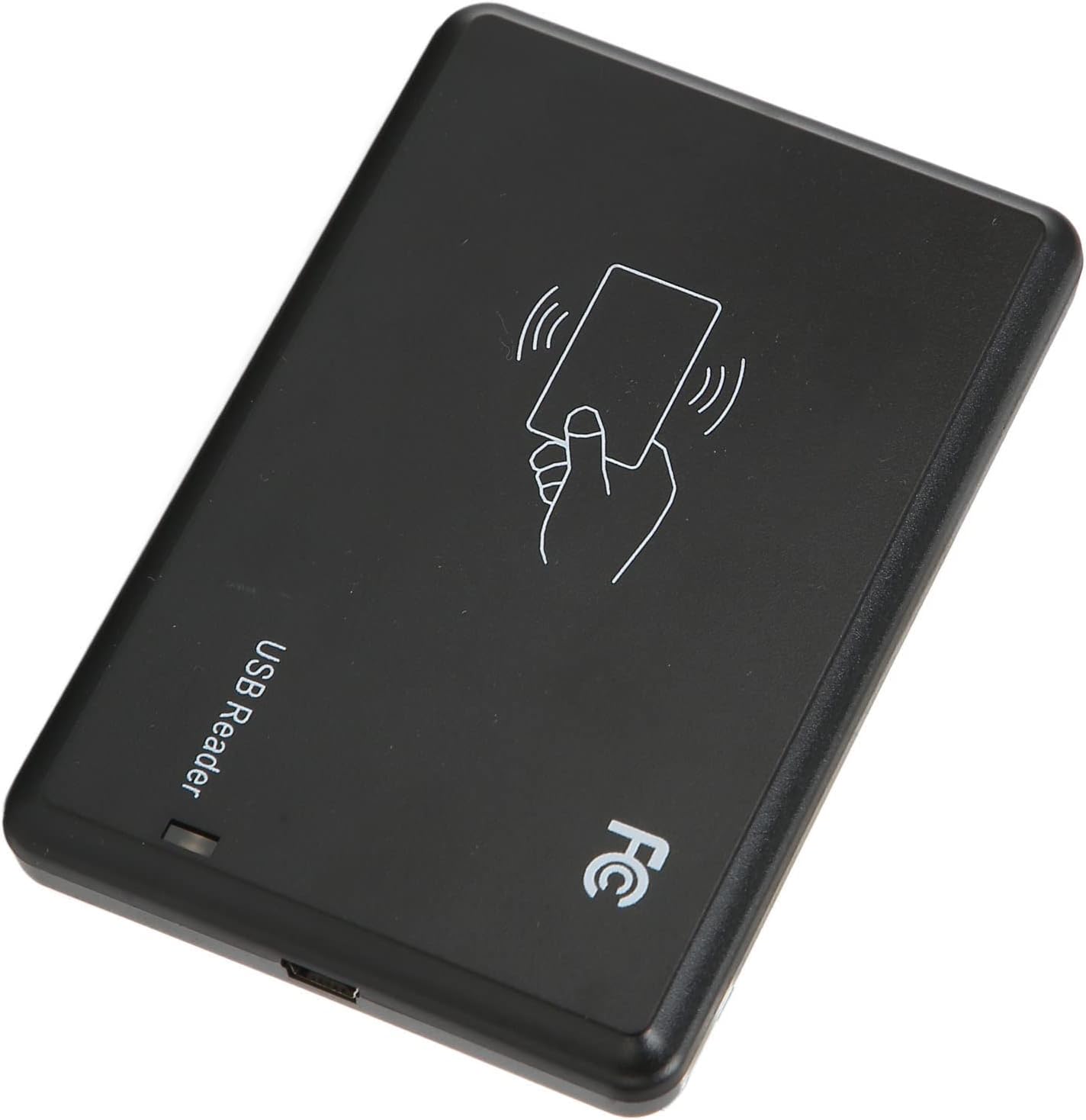

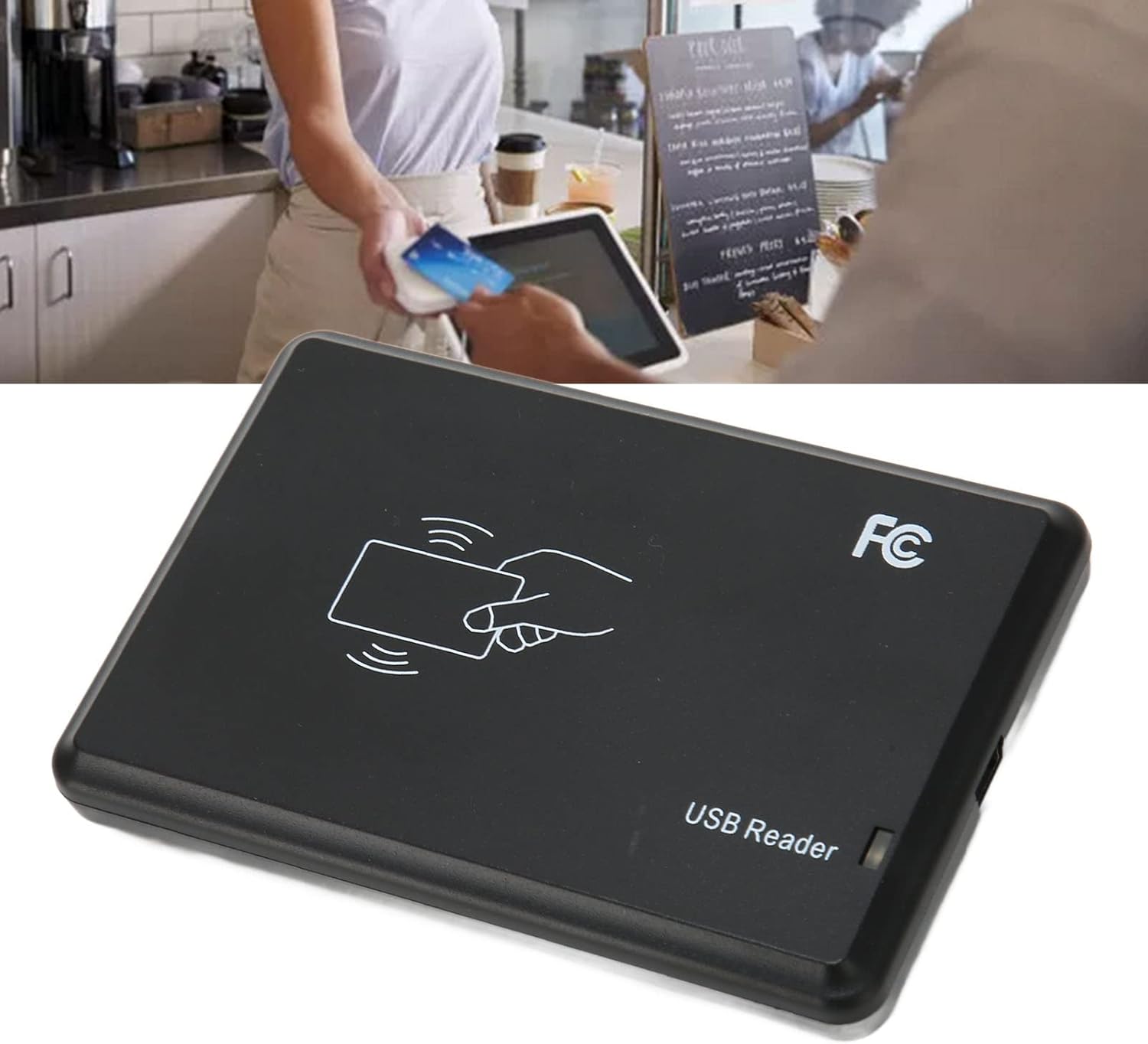

UHF Card Writer 902-928MHz with 50cm Max Read Range, ISO 18000-6C Proximity Card Reader with USB Virtual Keyboard for Asset Tracking Systems

Specification:Item Type: UHF Card ReaderMaterial: ABSOperating Frequency: Chinese National standard (920-925MHz), standard (902-928MHz)Tag Protocol: ISO18000-6C (EPC gen2)Frequency Hopping Mode: Broad spectrum frequency hopping (FHSS) or fixed frequency that can be set by softwareAntenna Parameters: 2dBi circularly polarized antenna (built in)Output Power: 12.5dBm - 26dBm (software adjustable)Reading Distance: The maximum reading distance of the tag is 50cm/19.7in (with the transmitting power, antenna type, tag type and application environment and other factors)Maximum Distance of Writing Tag: 20cm/7.9in (with the transmitting power, antenna type, tag type and application environment and other factors)Operation Mode: Active mode/passive mode/answer mode (not recommended)Power interface: DC +5V Communication Interface: USB virtual keyboardOperating Temperature: -20℃-55℃Storage Temperature: -40℃-85℃Dimension: Approx. 104 x 68 x 10mm / 4.1 x 2.7 x 0.4inApplications: Widely used in logistics and warehousing management, intelligent parking management, product anti‑counterfeit detection, consumption management, attendance management, catering management, swimming pool management and other systemsPackage List：1 xUHF Card Reader1 x Connecting Line

• OPTIMIZED READ / WRITE DISTANCE: This UHF RFID Reader reliably detects tags up to 50cm away and writes data up to 20cm. Ideal for desktop card issuing and verification.
• MULTI-STANDARD FREQUENCY: Operates on both 902-928MHz and 920-925MHz bands, ensuring compatibility with and Chinese standard UHF tags under ISO 18000-6C.
• EASY USB DEPLOYMENT: Functions as a USB virtual keyboard for straightforward setup. This USB Desktop Reader simplifies data capture for your existing software.
• WIDE APPLICATION SPECTRUM: A versatile UHF Card Writer for improving efficiency in warehousing, library asset tracking, and personnel access control systems.
• CUSTOMIZABLE POWER OUTPUT: Software adjustable power from 12.5dBm to 26dBm gives you precise control over the identification field for your specific application.
